Description
- Intel LGA 1700 socket compatible with Intel Core, Pentium Gold and Celeron processors
- Intel B760 chipset designed for compact micro ATX desktop builds
- Dual-channel DDR4 support across 2 DIMM slots up to 64 GB and 5333 MHz
- Supports up to 6 storage drives via M.2 and 4 SATA III ports with RAID support
- Equipped with 2.5 Gigabit Ethernet and integrated 7.1-channel audio

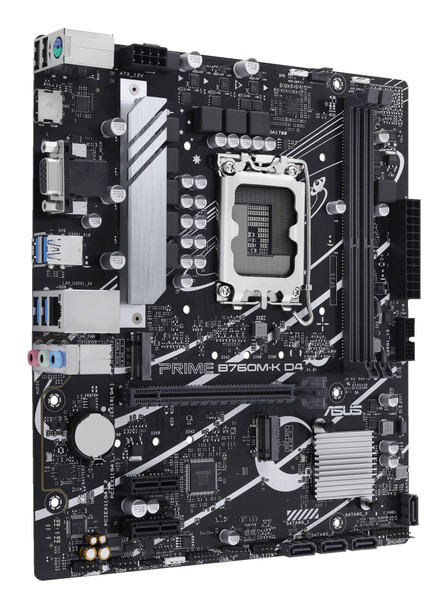

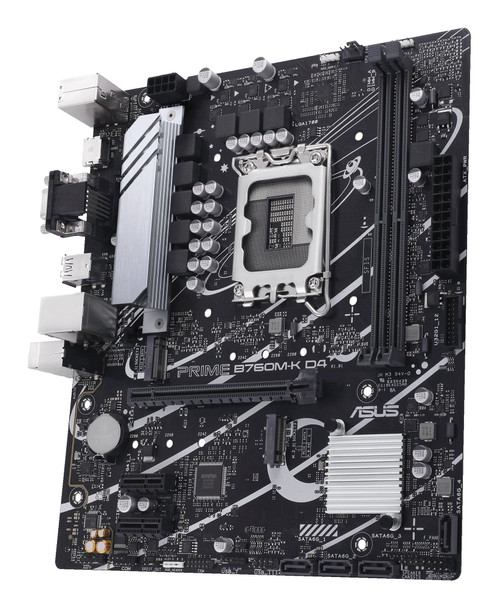

This micro ATX motherboard is built around the Intel B760 chipset, offering a solid foundation for compact desktop PC builds. Equipped with an LGA 1700 socket, it supports a wide selection of processors including Intel Core i9, i7, i5, i3, Pentium Gold and Celeron models.
For system memory, the board features two DIMM slots supporting dual-channel DDR4 memory up to 64 GB at speeds up to 5333 MHz. Storage requirements are handled by M.2 and four SATA III interfaces, accommodating up to six drives with RAID 0, 1, 5, and 10 configurations. Built-in 2.5 Gigabit Ethernet provides wired network connectivity, alongside 7.1-channel audio output.

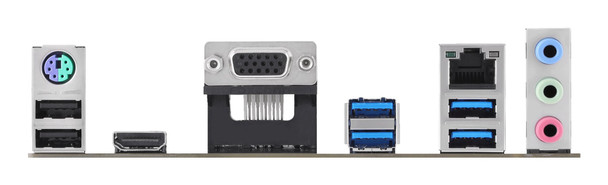

External connectivity includes HDMI and VGA video outputs, four USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, and a PS/2 port for peripherals.
Additional Information
Socket: |
LGA1700 |
Chipset: |
B760 |
Form Factor: |
Micro-ATX |
Condition: |
New |
Grade: |
Brand New |
Memory Type: |
DDR4 |
Manufacturer part no.: | 90MB1DS0-M1EAY0 |
Our SKU: | M8J-QNT-0MR |
