Description
- 12U 483 mm (19") wall mounting cabinet, 595 x 540 x 400 mm (H x W x D), black (RAL 9005)

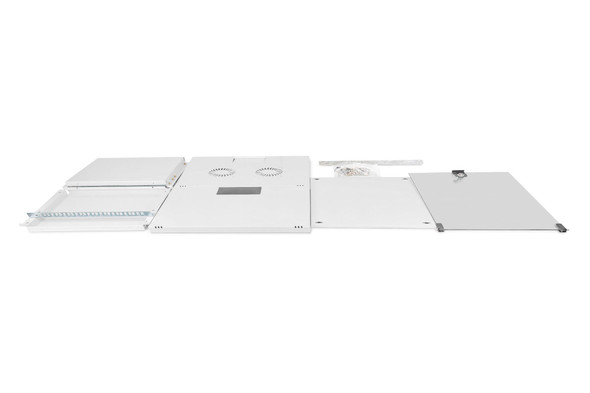

- Delivered unassembled as a flat pack to save cost and space; step-by-step instructions included
- Lockable safety-glass front door with 200° opening angle and 1-point lock; door hinges can be switched; side panels on both sides
- Two pairs of galvanised 19" profile rails, front and rear, labelled with rack units and adjustable in depth (equipment mounting depth 170-270 mm)
- 1.1-1.5 mm powder-coated sheet steel; 60 kg load capacity; IP20; cable entry with brush strip in the top and plastic cover in the base; roof prepared for fan units
- Includes installation set (screws, cage nuts, washers), 2 keys and a quick start guide

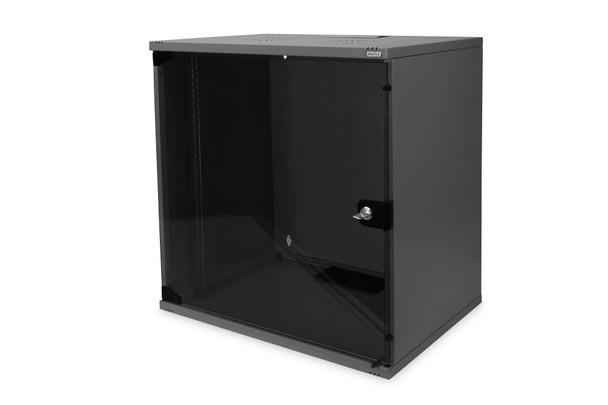

The DIGITUS SOHO DN-19 12-U-S-SW is a 12U 19" wall mounting cabinet for small and medium-sized networks, measuring 595 x 540 x 400 mm in black (RAL 9005). It is made from powder-coated sheet steel up to 1.5 mm thick and is delivered as a flat pack for on-site assembly.
A lockable safety-glass door opens to 200°, and inside are two pairs of depth-adjustable galvanised 19" rails for equipment up to 270 mm deep. Cables enter through a brush strip in the roof or the base, and the roof is pre-punched for fan units. Load capacity is 60 kg.
Additional Information
Grade: |
Brand New |
Manufacturer part no.: | DN-1912-U-S-SW |
Our SKU: | G08-UPQ-LH6 |
