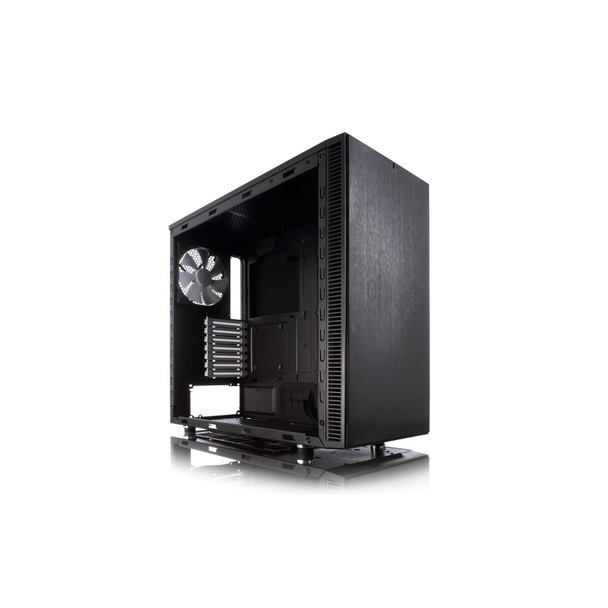

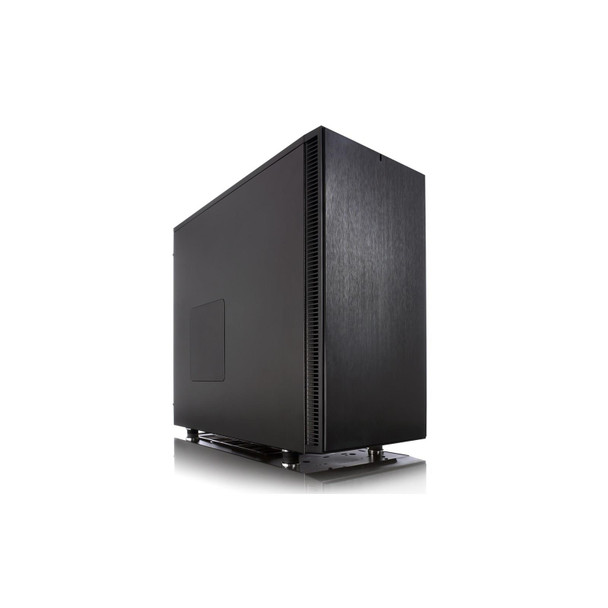

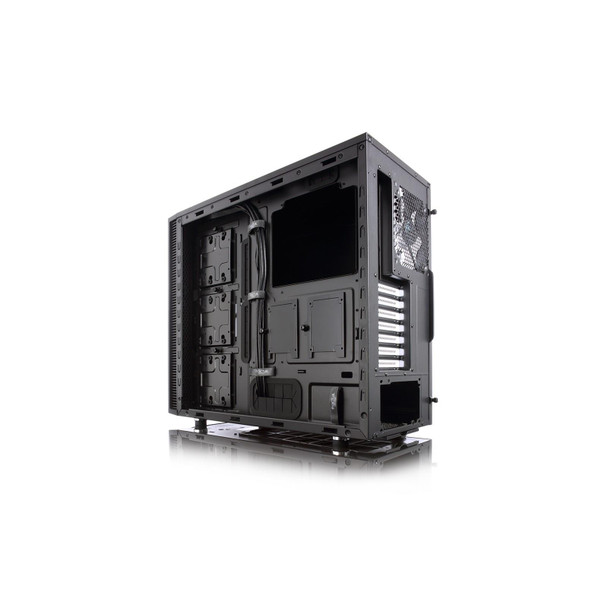

Fractal Design Define S Mid Tower ATX Gaming Desktop PC Case Black

Customer returned item. May have minor signs of handling. Item may not be in the original box. However we back this up with a 1 year warranty!

• PSU not included
• 0 x 5.25" External Bay(s)
• 2 x 2.5", 3 x 3.5" HDD Bay(s)
• Max MB Size: ATX

The Fractal Design Define S lends the appearance, sound dampening technology, and support for a wide variety of components from the widely popular Define Series, while introducing a new, innovative internal layout. The Define S case is packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support, presented in a stunning Scandinavian inspired construction.

The modernized internal layout of the Define S omits the optical drive bays, instead focusing on a clear straight airflow path and uncompromising water cooling support.

The Define S case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, multiple ModuVent™ fan vent covers and finely tuned Dynamic Series fans.

Cooling system

• Front: 3 – 120/140 mm fans (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed)
• Rear: 1 – 120/140 mm fan (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed)
• Top: 3 - 120/140 mm fan (not included) or 1 - 180 mm fan with 165mm hole spacing (not included)
• Bottom: 1 – 120/140 mm fan (not included)
• Side: 1 – 120/140 mm fan (not included)
• Dust filters: Bottom and front intakes

Water cooling compatibility - Radiators

• Front – 360, 280, 240, 140 and 120 mm radiators of all thicknesses
• Top – 420, 360, 280, 240, 140 and 120 mm radiators. (A thickness limitation of 55mm for both radiator + fan applies on 420, 280 and 140 mm radiators)
• Bottom – 120 mm radiator (Use of radiators in the bottom position limits the PSU length to 165 mm)
• Rear – 120 or 140 mm radiator

Water cooling compatibility - Pumps

• Pre-drilled holes on the bottom panel, supports many DDC and D5 variants

Water cooling compatibility - Reservoirs

• Adjustable mounting brackets allow for almost any rectangular mounting screw pattern
• Maximum distance between the mounting bracket screw positions: 350mm height / 80mm width

Front interface

• 2 USB 3.0
• Audio in/out
• Power button with LED (blue)
• HDD activity LED (blue)
• Reset button
