GIGABYTE B760 DS3H Motherboard, LGA 1700, DDR5, PCIe 5.0, Wi-Fi 6E - B760 DS3H WF6E GEN5

• Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors on LGA 1700
• Dual-channel DDR5 support across 4 DIMM slots, handling up to 256 GB at up to 5600 MHz
• PCIe 5.0 x16 slot featuring an EZ-Latch quick-release mechanism for easy graphics card removal
• Dual PCIe 4.0 x4 M.2 connectors and four SATA III ports with RAID 0, 1, 5, and 10 support
• High-speed networking with GbE LAN and 802.11ax Wi-Fi featuring EZ-Plug antenna installation
• Rear connectivity includes DisplayPort, HDMI, and a 20Gb/s USB 3.2 Gen 2x2 Type-C port

Designed for PC builders seeking reliable modern computing performance, this motherboard accommodates 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors on the LGA 1700 socket. A hybrid 8+2+1 phases VRM solution ensures stable power delivery for demanding applications and multitasking.

Memory capabilities include four DDR5 DIMM slots supporting up to 256 GB at speeds reaching 5600 MHz with XMP profile support. Expansion and storage are well catered for with a primary PCIe 5.0 x16 slot featuring an EZ-Latch quick-release design, alongside two PCIe 4.0 x4 M.2 slots and four SATA III ports for internal drives.

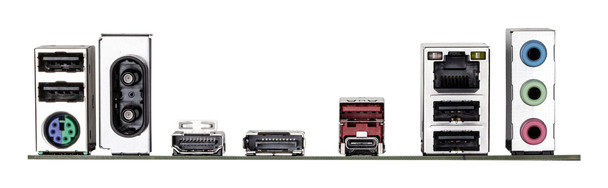

For networking and peripheral connections, the board is equipped with Gigabit Ethernet and 802.11ax Wi-Fi. The rear panel provides comprehensive connectivity options including HDMI, DisplayPort, and a 20Gb/s USB 3.2 Gen 2x2 Type-C port.
