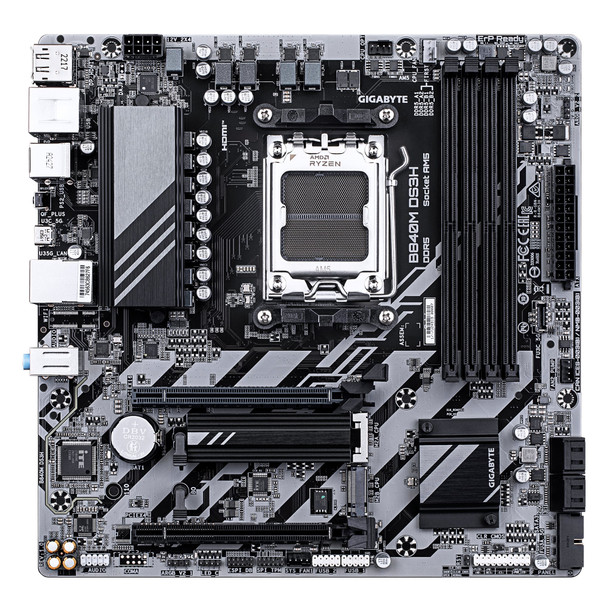

GIGABYTE B840M DS3H AMD Socket AM5 Micro-ATX Motherboard, DDR5, 2.5GbE - B840M DS3H

• AMD Socket AM5 supports AMD Ryzen 9000, 8000, and 7000 series processors
• Dual-channel DDR5 support across 4 DIMM slots, up to 8200MHz and 256GB
• Digital 8+2+2 phases VRM solution for stable power delivery
• Storage options include 2 M.2 slots (1 PCIe 4.0 x4) and 4 SATA III ports
• 2.5GbE LAN interface for high-speed wired network connectivity
• EZ-Latch PCIe x16 slot features a quick-release mechanism for easy upgrades

Designed for the AMD Socket AM5 platform in a compact Micro-ATX form factor, this motherboard is built to support AMD Ryzen 7000, 8000, and 9000 series desktop processors. It provides a versatile foundation for everyday computing and gaming setups without occupying excess chassis space.

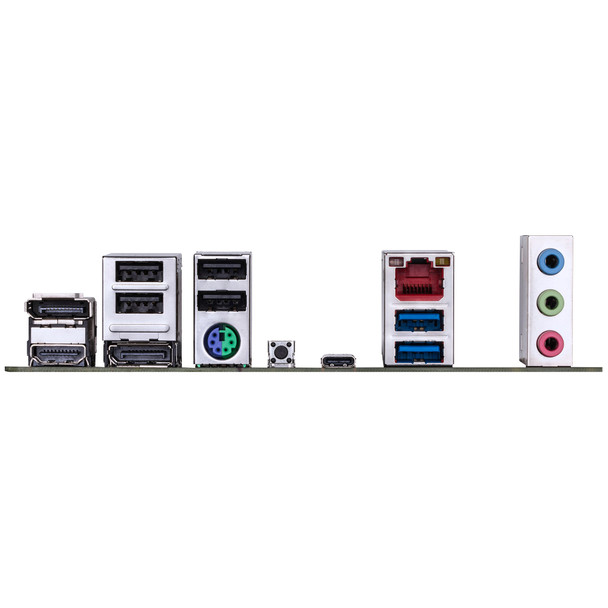

The board features four DDR5 DIMM slots supporting up to 256GB of dual-channel system memory at clock speeds up to 8200MHz. For storage, it provides two M.2 connectors—including a PCIe 4.0 x4 slot—alongside four SATA III connectors with RAID 0, 1, and 10 support. Wired networking is powered by a 2.5GbE Ethernet port, and rear display outputs include HDMI 2.1 and two DisplayPort 1.4 connections.

Power is delivered through a digital 8+2+2 phases VRM solution. For easier assembly and cooling management, the board includes an EZ-Latch PCIe x16 slot with a quick-release design, multiple fan and water pump headers, and Q-Flash BIOS tools.
