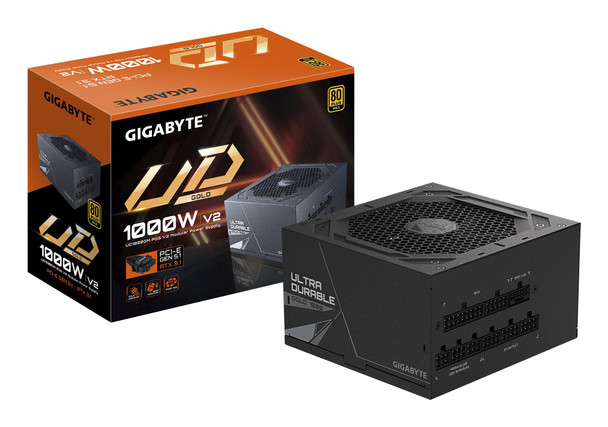

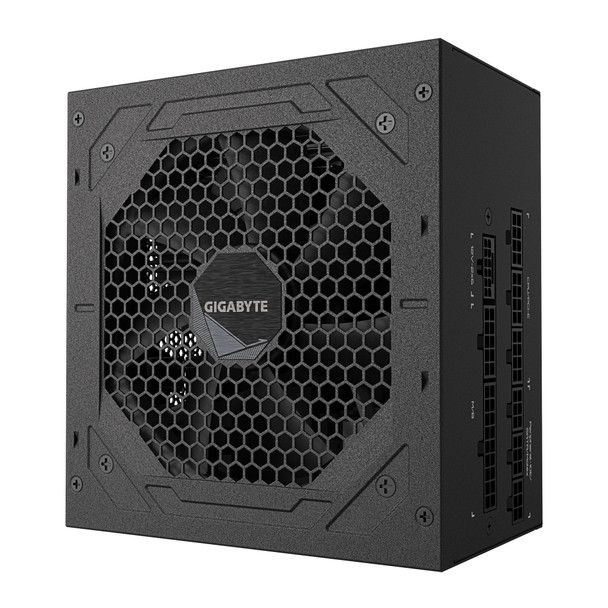

GIGABYTE UD1000GM PG5 V2 ATX Power Supply 1000W 80 PLUS Gold Fully Modular - GP-UD1000GM PG5 V2

• 1000W continuous output with a powerful single +12V rail and active PFC
• 80 PLUS Gold certified delivering up to 90% electrical efficiency
• Intel ATX 3.1 and PCIe Gen 5.1 compliant with a dedicated 16-pin connector
• Fully modular cabling featuring 4 PCIe 6+2-pin and 8 SATA power connectors

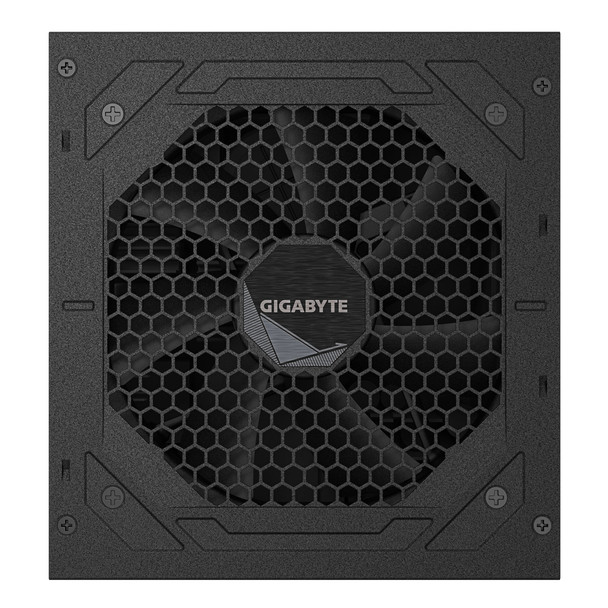

• 120mm smart hydraulic bearing (HYB) fan for quiet, active cooling
• Built with 100% Japanese capacitors and comprehensive circuit protections

This high-capacity ATX power supply is engineered for demanding desktop gaming rigs and high-performance PC builds. Delivering a continuous 1000W output, it meets both Intel ATX 3.1 and PCIe Gen 5.1 standards to reliably support modern graphics cards and multicore processors.

Built with 100% Japanese capacitors, the unit features a powerful single +12V rail capable of providing up to 83.3A. An 80 PLUS Gold certification ensures an operating efficiency of up to 90%, reducing excess heat and energy consumption under load.

The fully modular design allows users to attach only the cables required, improving internal airflow and simplifying cable routing. Active cooling is managed by a 120mm smart hydraulic bearing fan, while integrated protections safeguard against over-voltage, over-power, over-temperature, over-current, under-voltage, and short circuits.
