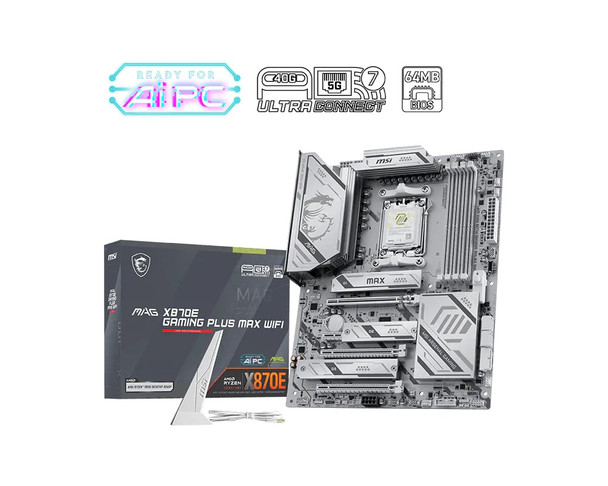

MSI MAG X870E Gaming Plus Max WiFi ATX Motherboard Socket AM5 - MAG X870E GAMING PLUS MAX WIFI

• AMD Socket AM5 supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors
• Four DDR5 DIMM slots support dual-channel memory up to 256 GB and speeds up to 8200 MHz
• Next-gen expansion with PCIe 5.0 slot, Lightning Gen 5 M.2, and 40Gbps USB4 connectivity
• High-speed networking with Realtek 5G Ethernet LAN and integrated Wi-Fi 7 with Bluetooth
• Robust 14+2+1 digital power phase system with 60A Smart Power Stages and dual 8-pin CPU power
• EZ DIY design features screwless EZ M.2 Shield Frozr II and a one-tap EZ PCIe release button

This ATX motherboard is built around the AMD X870E chipset and Socket AM5, designed to provide a stable foundation for gaming systems and performance PC builds. It is compatible with AMD Ryzen 9000, 8000, and 7000 series desktop processors, offering support for up to 256 GB of dual-channel DDR5 memory across four DIMM slots.

Engineered for demanding computing tasks, the board features a 14+2+1 digital power phase design with 60A Smart Power Stages, dual 8-pin power connectors, and an 8-layer PCB. Frozr Guard thermal protection combines extended heatsinks and 7W/mK MOSFET pads to maintain stable operating temperatures. Assembly is streamlined with screwless EZ M.2 Shield Frozr II heatsinks and a dedicated physical button for simple PCIe card removal.

Connectivity options include PCIe 5.0 expansion, Lightning Gen 5 x4 M.2 storage, USB4 40Gbps capability, Realtek 5G Ethernet, and wireless Wi-Fi 7 with Bluetooth.
