PU-1103-KIT HDMI over CAT5e/6 Extender Set (Self Powered Receiver)

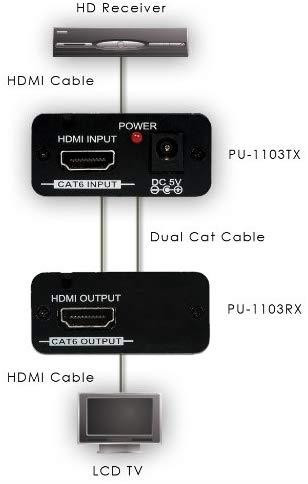

The PU-1103-KIT HDMI over Twin CAT5e/6 transmitters and receivers are the perfect solution to extend HDMI signals via CAT cabling up to 40m. For even longer distances, also use the PU-108 repeater, which can be cascaded up two layers. The PU-1103 receiver unit does not require local power (power is received through the DDC CAT5e/6 cable from the transmitter).

• v1.3 HDMI, HDCP 1.1 and DVI 1.1 compliant
• HDMI over CAT5e/6 Extender Set with self powering receiver
• Resolutions supported: PC - VGA to WXGA; HDTV - 480i to 1080p plus 1080p24fps
• High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM
• Compatible with CAT-5E and CAT-6 cables. CAT-6 is recommended for better performance
• Supports CEC functions
• Supports Deep Colour (10 & 12 bit)
• Equalises and recovers incoming TMDS data before re-transmitting to ensure optimum signal quality
• Supports xvYCC
• Supports 3D signals
