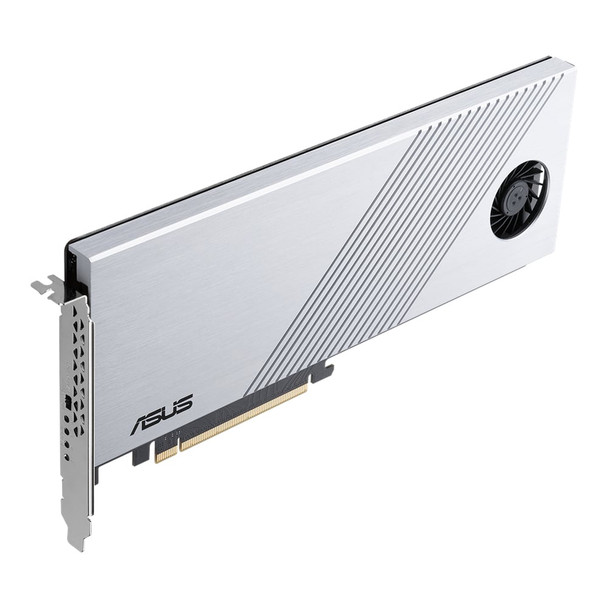

ASUS Hyper M.2 x16 Gen 4 PCIe Expansion Card 4 M.2 Slots - 90MC08A0-M0EAY0

• Supports up to four NVMe M.2 SSDs (sizes 2242, 2260, 2280, and 22110) via PCIe 4.0/3.0.
• Delivers up to 256 Gbps of bandwidth, doubling the speed of PCIe 3.0 interfaces.
• Active cooling system features a large heatsink and a single fan to prevent thermal throttling.
• Two-phase power solution provides up to 14 watts of output to support high-performance drives.
• Compatible with AMD TRX40/X570 and Intel X299/Z390/Z370 platforms for bootable RAID arrays.

This PCIe expansion card allows PC builders and power users to add up to four high-speed NVMe M.2 SSDs to their system. Designed for demanding storage setups, it uses a PCIe 4.0 interface to deliver a maximum bandwidth of 256 Gbps, which is eight times faster than a single PCIe 3.0 drive. It supports drive sizes ranging from 2242 up to 22110.

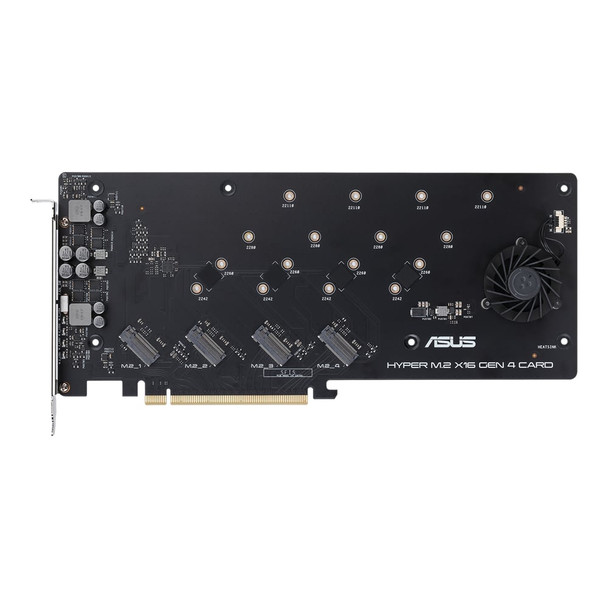

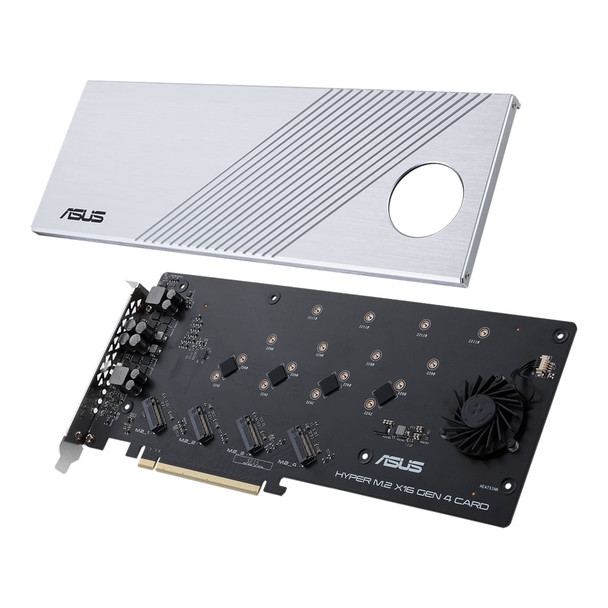

To maintain peak performance under heavy workloads, the card features a server-grade PCB, a large heatsink, and an active cooling fan to prevent thermal throttling. A robust two-phase power solution delivers up to 14W of power per drive to support the latest NVMe SSDs. The ASUS Hyper M.2 x16 Gen 4 card is compatible with AMD TRX40 and X570 platforms, as well as Intel X299, Z390, and Z370 platforms for RAID-on-CPU functions. It also supports other motherboards via PCIe bifurcation settings in the BIOS.
