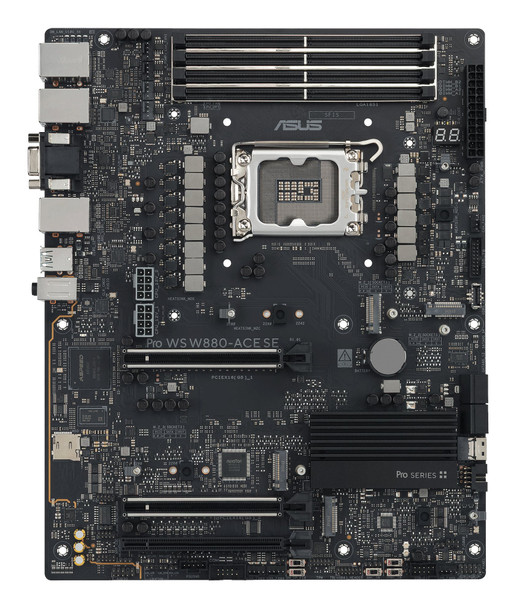

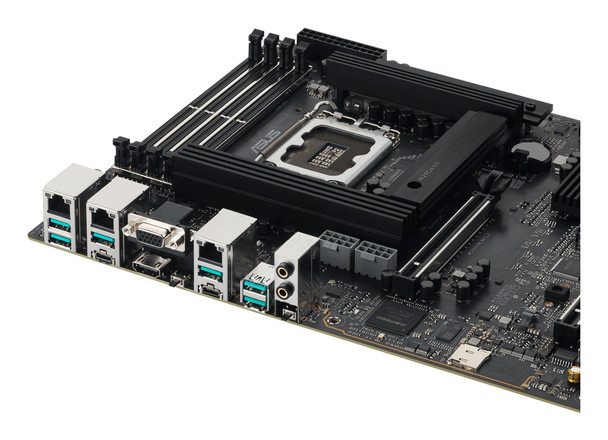

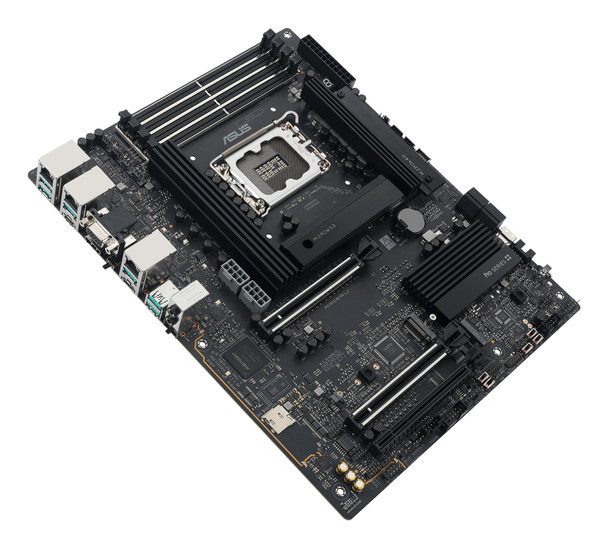

ASUS Pro WS W880-ACE SE Intel LGA 1851 DDR5 PCIe 5.0 ATX Motherboard - 90MB1KV0-M0EAY0

• Intel LGA 1851 socket supporting Intel Core Ultra (Series 2) desktop processors
• Four dual-channel DDR5 DIMM slots supporting up to 256 GB of system memory
• Two PCIe 5.0 x16 slots with SafeSlot protection for heavy graphics cards
• One PCIe 5.0 M.2 slot and three PCIe 4.0 M.2 slots alongside four SATA III connectors

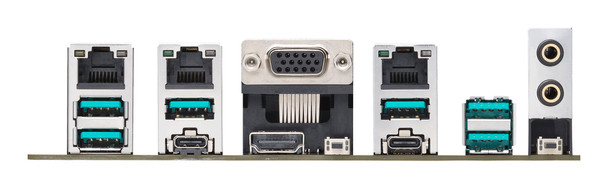

• Thunderbolt 4 port with data transfer speeds up to 40 Gbps and dual 2.5Gb Ethernet
• Onboard AST2600 BMC controller with dedicated LAN port for remote IPMI management

This ATX workstation motherboard is engineered for Intel Core Ultra (Series 2) desktop processors on the LGA 1851 socket. Designed for content creation, deep learning, and AI workloads, it features an 8+1+2+2 teamed power stage design with ProCool II connectors and an eight-layer PCB to deliver stable power to demanding high-core-count processors.

Memory support spans four DDR5 DIMM slots accommodating up to 256 GB of unbuffered RAM. For expansion and storage, the board provides two PCIe 5.0 x16 slots reinforced with SafeSlot brackets, one PCIe 5.0 M.2 slot, three PCIe 4.0 M.2 slots, and four SATA III ports.

Connectivity includes a high-speed Thunderbolt 4 port delivering up to 40 Gbps data transfers, alongside dual 2.5Gb Ethernet ports. For centralised administration, the onboard AST2600 BMC controller and dedicated management LAN port enable server-grade remote IPMI control and real-time system monitoring.
