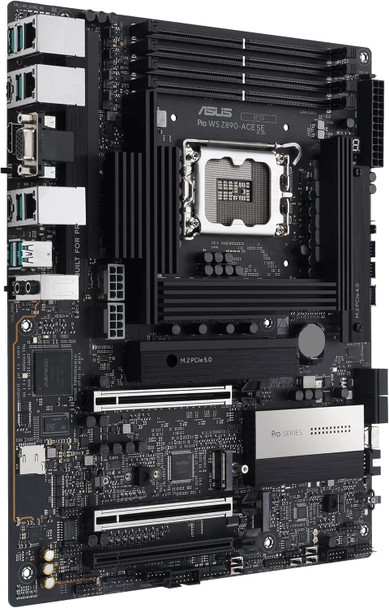

ASUS Pro WS Z890-ACE SE Intel ATX Motherboard, LGA 1851, DDR5, PCIe 5.0 - 90MB1JC0-M0EAY0

• Intel LGA 1851 socket designed for Intel Core Ultra processors (Series 2)
• Supports up to 256GB dual-channel DDR5 memory across 4 DIMM slots
• Expansion includes 2 PCIe 5.0 x16 slots and 4 M.2 slots for fast storage
• High-speed networking with 10Gb, 2.5Gb, and dedicated 1Gb management LAN
• ASPEED AST2600 BMC controller enables server-grade remote IPMI management
• Rear Thunderbolt 4 USB Type-C port supporting data speeds up to 40Gbps

This workstation ATX motherboard is built around the Intel Z890 chipset and designed for artificial intelligence development, deep learning, and content creation. Engineered for demanding workloads, it features a rotated CPU socket and horizontal memory layout to support front-to-back chassis airflow in rack-mount and multi-fan workstation environments.

Compatible with Intel Core Ultra processors (Series 2) via the LGA 1851 socket, the board accommodates up to 256GB of DDR5 memory and offers two PCIe 5.0 x16 slots alongside four M.2 storage slots. A 16+2+1+2 teamed power delivery design with solid heatsinks and high-conductivity thermal pads maintains stable operation under heavy processing loads.

Connectivity includes a 40Gbps Thunderbolt 4 USB Type-C port, Marvell 10Gb Ethernet, and Intel 2.5Gb Ethernet. For enterprise administration, an onboard ASPEED AST2600 BMC controller with a dedicated Gigabit LAN port provides hardware-level remote management.
