ASUS Pro WS W890E-SAGE SE Workstation Motherboard LGA 4710-2 DDR5 EEB - 90MB1LH0-M0EAY0

• Intel LGA 4710-2 socket supporting Intel Xeon processors up to 86 cores
• Supports up to 4TB ECC R-DIMM DDR5 memory across 8 slots with overclocking
• Seven PCIe 5.0 x16 slots, four M.2 slots, MCIO connector and SlimSAS NVMe
• Dual 10 Gb LAN ports plus dedicated IPMI LAN port with onboard AST2600 BMC

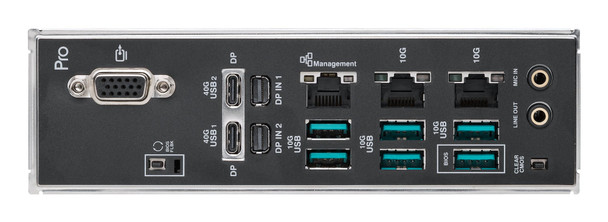

• Dual USB4 40Gbps Type-C ports, six USB 3.2 Gen 2 ports and DisplayPort 1.4

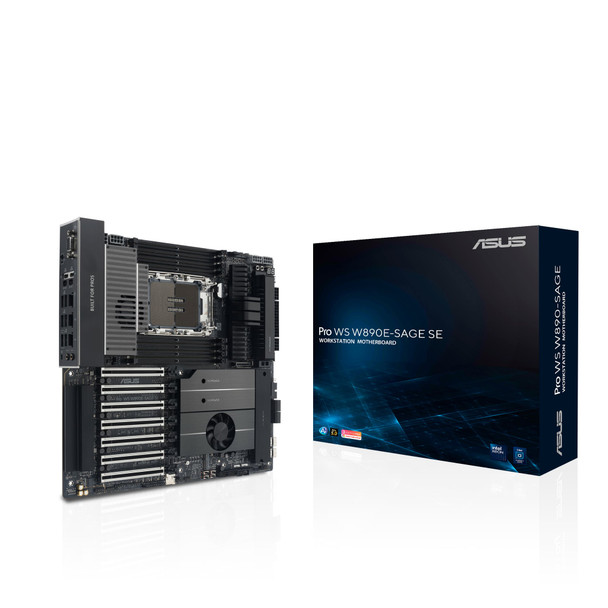

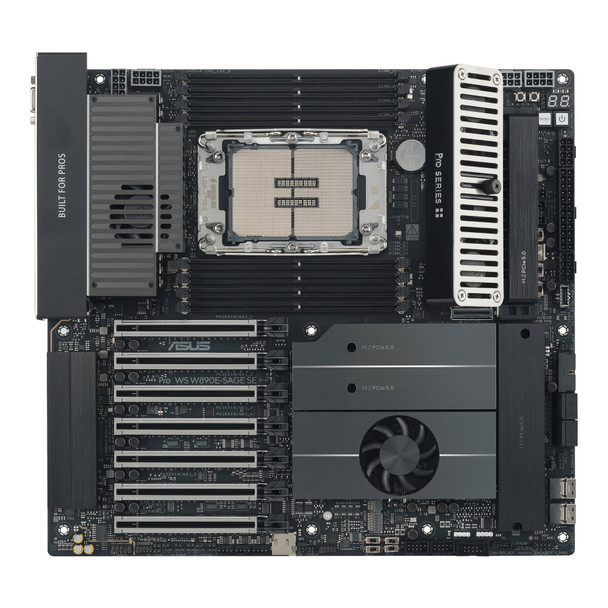

This EEB workstation motherboard is built for creative professionals, developers and engineers using Intel Xeon processors. Built around the LGA 4710-2 socket, it accommodates processors with up to 86 cores and supports CPU and memory overclocking for demanding computing and artificial intelligence workflows.

The Pro WS W890E-SAGE SE supports up to 4TB of ECC R-DIMM DDR5 memory across eight octa-channel slots. Comprehensive expansion options include seven PCIe 5.0 x16 slots, four M.2 slots, SlimSAS NVMe support, and an MCIO connector, handling up to ten storage drives across SATA and NVMe interfaces with RAID capability.

High-speed networking and remote administration are handled by dual 10 Gb Ethernet ports and a dedicated IPMI LAN port linked to an onboard AST2600 BMC controller. Additional connectivity includes two rear 40Gbps USB4 Type-C ports, six USB 3.2 Gen 2 ports, and robust power delivery ready for dual-PSU setups.
