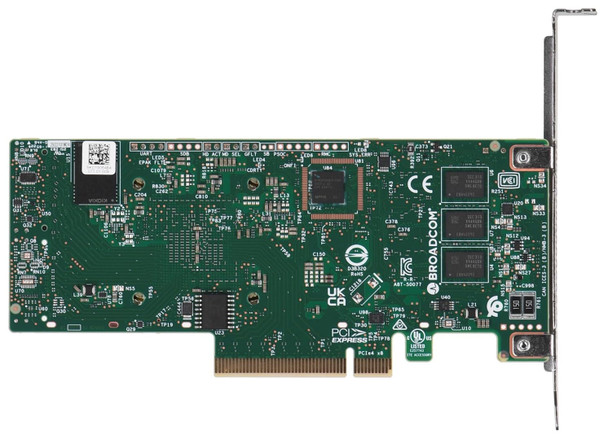

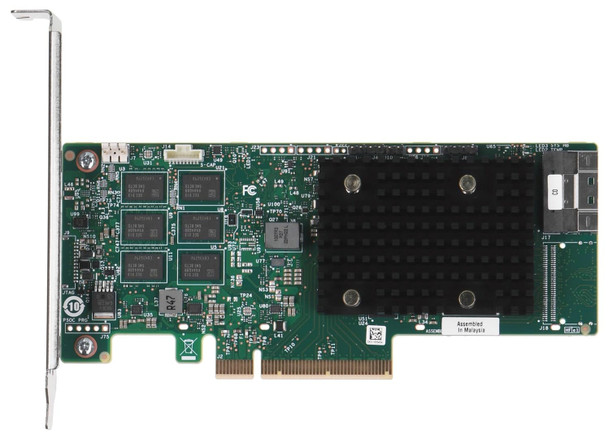

Broadcom MegaRAID 9560-8i 8-Port Tri-Mode RAID Controller, PCIe 4.0 x8, 4GB - 05-50077-01

• Tri-Mode connectivity supports 12Gb/s SAS, 6Gb/s SATA, and Gen 4 NVMe storage devices
• High-bandwidth PCIe 4.0 x8 host interface backward compatible with PCIe 3.0 slots
• Hardware RAID levels 0, 1, 5, 6, 10, 50, 60, and JBOD modes for robust data protection
• On-board 4GB DDR4 SDRAM cache memory powered by the Broadcom SAS3908 processor
• Low-profile MD2 form factor with side-mounted connectors for easy routing in rack servers
• Supports up to 240 SAS/SATA drives or up to 24 NVMe drives per controller

This low-profile internal storage controller delivers enterprise-grade data protection and high-throughput connectivity for rackmount servers. Engineered for demanding database, cloud, and analytics workloads, it combines broad device compatibility with hardware-based redundancy.

Powered by the SAS3908 RAID-on-Chip processor with 4GB of DDR4 cache, the Broadcom MegaRAID 9560-8i features a PCIe 4.0 x8 host interface. Tri-Mode SerDes technology allows SAS, SATA, and NVMe drives to operate simultaneously within the same enclosure bays, supporting up to 240 SAS/SATA drives or 24 NVMe devices.

Its compact MD2 form factor includes side-mounted SlimSAS connectors to ensure neat cable management in dense 1U and 2U server chassis. The controller supports multiple operating systems, including Windows, Red Hat Enterprise Linux, CentOS, SUSE, Ubuntu, and VMware ESXi.
