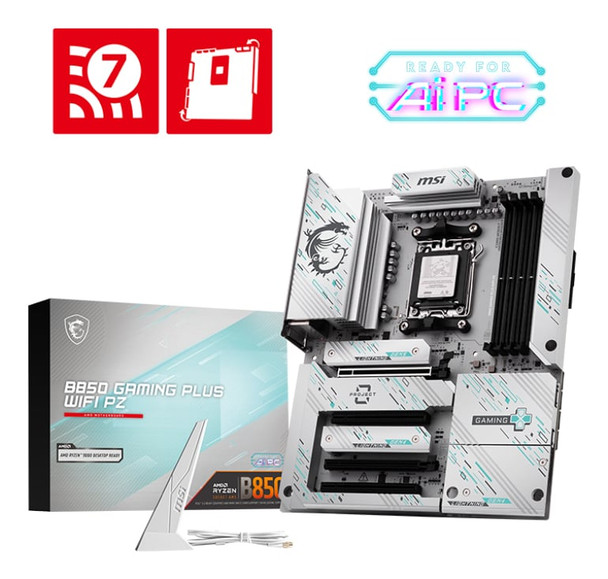

MSI B850 GAMING PLUS WIFI PZ ATX Motherboard Socket AM5 DDR5 - B850 GAMING PLUS WIFI PZ

• Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on Socket AM5
• Back-connect design routes power, fan, and SATA cables to the rear for clean cable management
• 4 DDR5 DIMM slots supporting dual-channel memory up to 256 GB and 8200 MHz (OC)
• High-speed networking with 5G Ethernet, Wi-Fi 7, and Bluetooth 5.4 connectivity
• Features PCIe 5.0 slot and Lightning Gen 5 x4 M.2 storage support
• 12+2+1 Duet Rail Power System with Extended Heatsink and M.2 Shield Frozr cooling

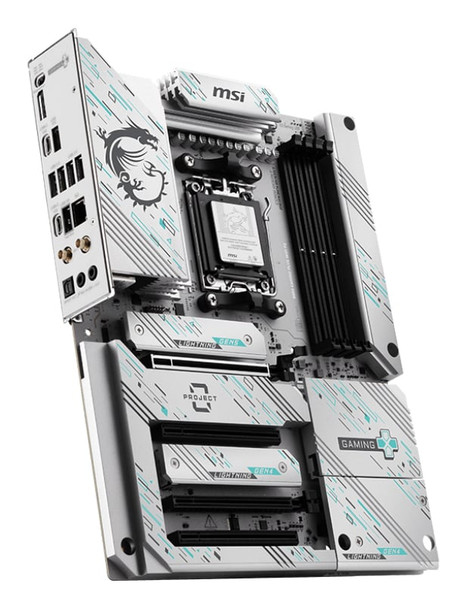

This ATX motherboard is built for Socket AM5 systems, offering support for AMD Ryzen 7000, 8000, and 9000 Series desktop processors. It features a specialised back-connect layout that relocates power connectors, fan headers, and SATA interfaces to the rear of the board, enabling cleaner cable routing inside compatible PC cases.

Equipped with a 12+2+1 Duet Rail Power System and dual 8-pin CPU power connectors, the board ensures reliable power delivery under heavy loads. Thermal management includes an extended heatsink, high-performance thermal pads, and M.2 Shield Frozr to keep components cool. It accommodates up to 256 GB of dual-channel DDR5 memory across four DIMM slots.

For expansion and connectivity, the MSI B850 GAMING PLUS WIFI PZ provides a PCIe 5.0 expansion slot, Lightning Gen 5 M.2 support, 5G LAN, and integrated Wi-Fi 7. Rear connections include HDMI 2.1, DisplayPort 1.2, and USB 3.2 Gen 2 Type-C ports.
