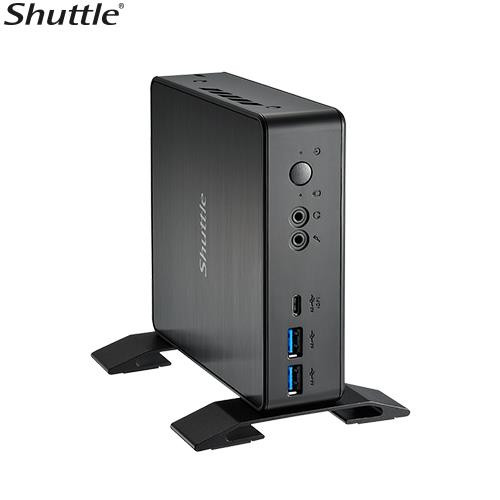

Shuttle XPC Nano PC NC40U Intel Celeron 7305U 1x HDMI 1x DP Barebone PC

Shuttle XPC Nano PC NC40U Intel Celeron 7305U 1x HDMI 1x DP Barebone PC

Brand new item.

Please note this is a barebones PC, you will need to add RAM/SSD/OS.

• Shuttle XPC Nano PC NC40U,
• Intel Celeron 7305U,
• 1x HDMI, 1x DP,1xUSB-C/DP,
• 6x USB3.2
• 1x 2.5" bay
• 2x M.2
• 1x LAN
• RAID
• Designed for 24/7 permanent operation
• incl. VESA & Stand

Multi-Tasking & Superior Performance for Your Business Needs
Shuttle’s latest XPC nano NC40U series houses the performance hybrid architecture of Intel® 12th Gen Alder Lake-U platform, capable of multitasking and parallelism, and with Intel® Iris® Xe graphics for powering AI workloads, including taking the graphics and multimedia processing to a new level. Despite its 0.85L palm size design, it can accommodate one 2.5" hard disk (up to 15mm) and enable additional M.2 SSDs or NVMe SSD installation for flexible storage capacity. Combined with rich I/Os as USB 3.2 Gen2, USB 3.2 Gen1, and Intel® Gigabit Lan, supporting triple display by the HDMI, DisplayPort, and Type-C that increase the functionality to adapt to various business computing to suit digital signage, Kiosk, edge computing, and video conference.

4K Resolution and Triple Display
The NC40U series provides an HDMI 2.0b, a DisplayPort 1.4a, and a Type-C to reach three independent displays, supporting resolutions up to 4096 x 2160 / 3840 x 2160 @60Hz.

Strong Expansion Capacity with M.2
With two native M.2 2280 Type M slots and one M.2 2230 Type E slot, the NC40U series offers considerably faster storage and expandability of M.2 SSDs, or NVMe SSDs and Wi-Fi modules.
*One M.2 2280 supports PCIe Gen 4 x4, and another supports PCIe Gen3 x4/SATA mode

Space for 2.5" Storage | Enhanced with RAID Support
Despite its tiny body, the NC40U series allows easy installation of up to 1x 15mm (7/9.5/12.5/15mm) 2.5" HDD/SSD to provide flexible storage capacity without volume restriction. Additionally, it supports both NVMe RAID (0, 1) and SATA RAID (0, 1) configurations, enhancing data security and performance for critical applications.

Rich I/O for Connectivity
NC40U series features flexible connectivity options for two USB 3.2 Gen2 and five 3.2 Gen1 (Including one Type-C) and an Intel ® 1GbE Lan that support Wake on LAN functions.

Exclusive Cooling Technology
The NC40U series features Shuttle's exclusive heat-pipe cooling system with a smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.

Operating System Support
- Windows 11 64bit
- Linux
