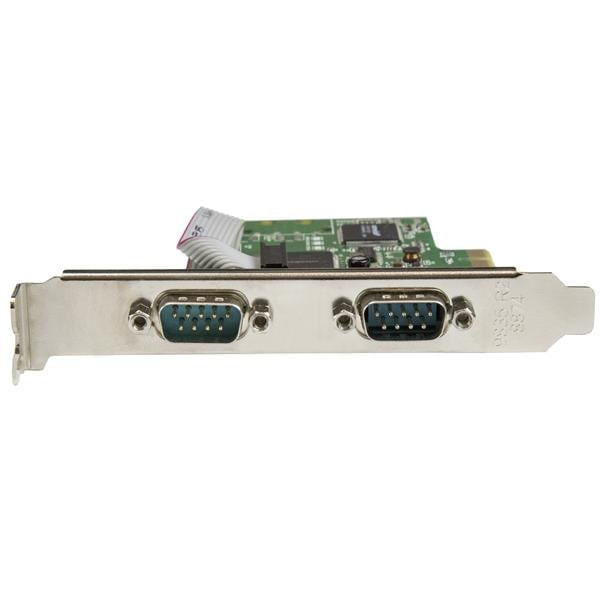

- Adds two RS232 (DB9) serial ports through a PCI Express slot
- Dual-channel 16C1050 UART with 256-byte FIFO per transmitter and receiver
- Data transfer rates up to 460Kbps
- PCIe 1.0a compliant; fits x1, x2, x4, x8 and x16 slots
- Standard-profile bracket fitted, with low-profile brackets included
Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot This PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment. Convenient system upgrades through PCIe The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems. High-performance serial communication The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use. Easy installation The serial card is easy to install and configure, with support for a broad range of Windows® operating systems. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.
