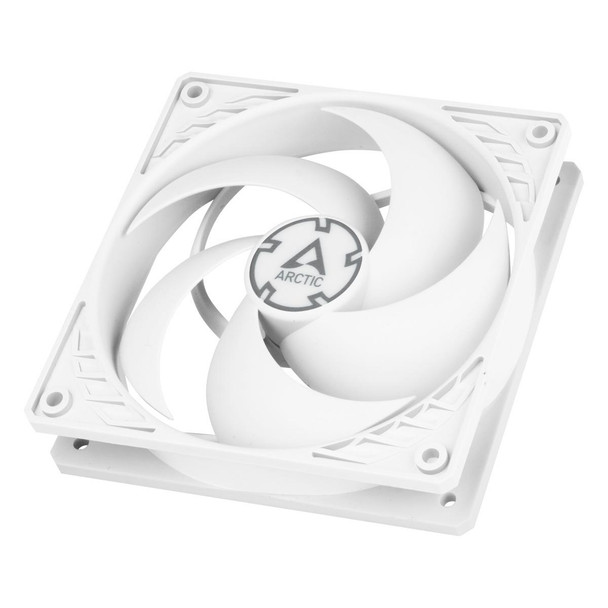

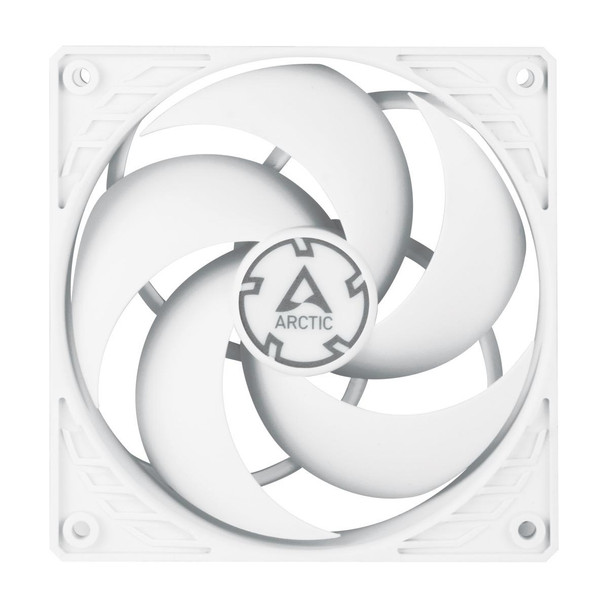

Arctic P12 PWM Pressure-optimised 120 mm Fan with PWM White

Brand New Item!

Performance

Fan Speed: 200 - 1800 rpm
Airflow: 56.3 CFM/ 95.65 m³/h
Static Pressure: 2.20 mm H₂O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0 - 40 °C

Fan

Fan Frame: Standard
Control Type: PWM
Connector: 4-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:

Typical Voltage: 12 V DC
Starting Voltage: 3.9 V
Current/ Voltage: 0.08 A / 12 V
Cable Lenght: 400 mm

OPTIMISED FOR STATIC PRESSURE
During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators.


STRONG COOLING PERFORMANCE
Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.


MORE EFFICIENT TECHNOLOGY
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.


EXTENDED LIFE SPAN
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
