Arctic P12 Slim PWM PST Pressure-optimised 120 mm Case Fan with Y-cable

SKU:
5C1-A45-007
UPC:
4895213703130
MPN:
ACFAN00187A
Condition:
New
  • Arctic P12 Slim PWM PST Pressure-optimised 120 mm Case Fan with Y-cable
  • Arctic P12 Slim PWM PST Pressure-optimised 120 mm Case Fan with Y-cable
  • Arctic P12 Slim PWM PST Pressure-optimised 120 mm Case Fan with Y-cable
  • Arctic P12 Slim PWM PST Pressure-optimised 120 mm Case Fan with Y-cable
  • Arctic P12 Slim PWM PST Pressure-optimised 120 mm Case Fan with Y-cable
  • Arctic P12 Slim PWM PST Pressure-optimised 120 mm Case Fan with Y-cable
£6.99

Out of stock

Description

Brand New Item!



Performance

Fan Speed: 300 - 2100 rpm
Airflow: 42.1 CFM/71.53 m³/h
Static Pressure: 1.45 mm H₂O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0 - 40 °C

Fan

Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:

Typical Voltage: 12 V DC
Starting Voltage: 5 V
Current/ Voltage: 0.12 A / 12 V
Cable Lenght: 400 mm

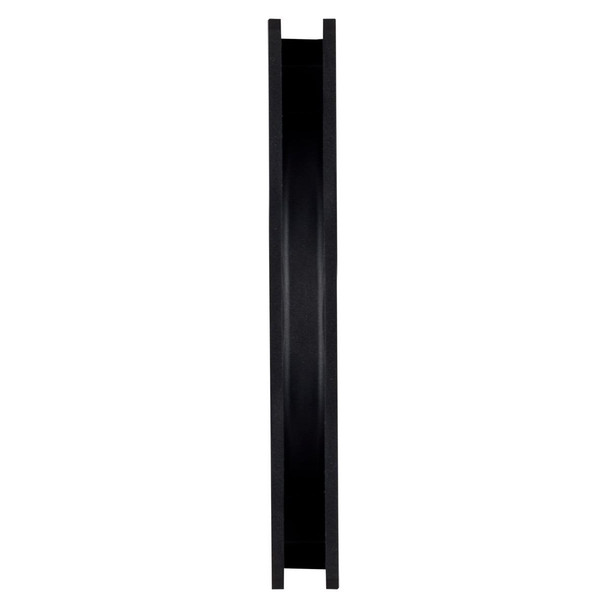

IDEAL WHERE SPACE IS LIMITED
Unlike normal case fans, which are 25 mm thick, the P12 Slim PWM PST has an installation depth of only 15 mm. This makes it a predestined fan for small form factor builds.

OPTIMISED FOR STATIC PRESSURE
During the development of the new P12 Slim PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 Slim PWM PST is particularly suitable for use on covered case vents or inlets with filters.

MORE EFFICIENT TECHNOLOGY
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 Slim PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

MAXIMUM QUIETNESS, MINIMUM VIBRATION
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

EXTENDED LIFE SPAN
A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
